| TECHNICIAL SPECIFICATIONS | |
| SLIDE LENGTH |
2200 mm |
| CIRCULAR SAW DIAMETER |
300 mm |
| CIRCULAR SAW SHAFT DIAMETER |
30 mm |
| MAX. CUTTING HEIGHT (Ø300MM) |
78 mm |
| MAX. CUTTING HEIGHT IS AT 45° POSITION |
55 mm |
| MAX. CUTTING WIDTH |
1300 mm |
| MAX. CUTTING WIDTH |
2200 mm |
| TABLE SIZE |
950x600 mm |
| ADDITIONAL TABLE SIZE-REAR TABLE |
950x750 mm |
| ADDITIONAL SIDE TABLE SIZE |
800x500 mm |
| PROFILE CAR SIZE |
1530x650mm |
| CIRCULAR SAW LEAN ANGLE |
0° - 45° |
| DUST SUCTION CONNECTION |
120 mm |
| MOTOR POWER |
4 kW |
| CIRCULAR SAW SPEED |
3700 -5100 rpm 3 |
| NET WEIGHT |
640 kg. |
| SCRATCHING FEATURES | |
| CIRCULAR SAW DIAMETER |
125 mm |
| CIRCULAR SAW SHAFT DIAMETER |
20 mm |
| CIRCULAR SAW SPEED |
7250 rpm |
| MOTOR POWER |
0,75 kW |
| CUT LENGTH |
2200 mm |
Excellent Cutting Performance
CNC Machines; It provides maximum efficiency with low investment cost. Thanks to CNC Machines, cutting problems will be reduced to a minimum.
International Standard
It offers a more durable and long-term working opportunity with equipment manufactured from quality materials, which are globally accepted with international standards.
Aluminum Slide
8 National Aluminum Slide System
Automation System
System with 24V DC automation

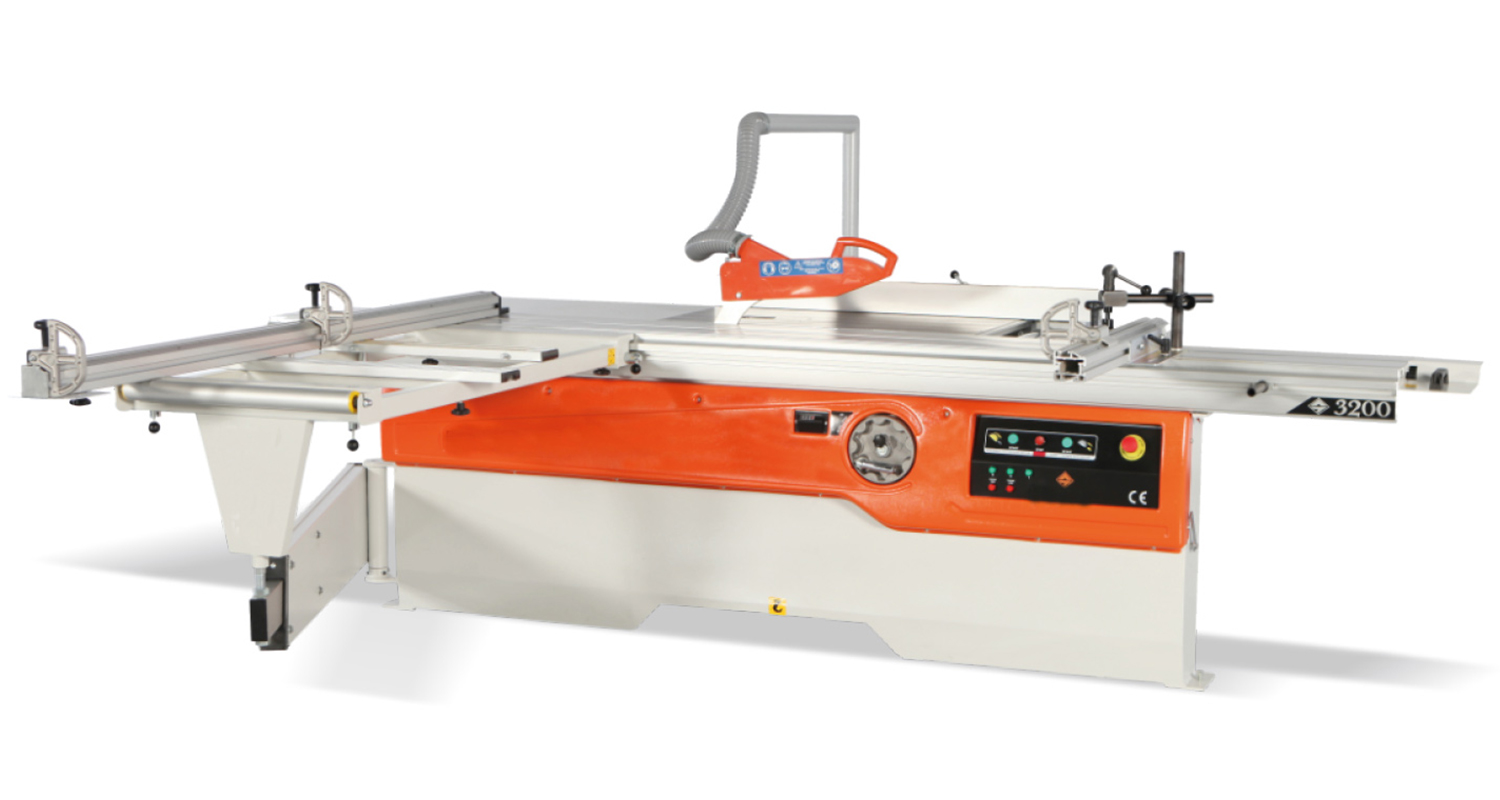

Horizontal Circular Machines, which are preferred by both amateur and professional users, provide ease of use thanks to their precision cutting technology and flexibility. It offers maximum performance with its innovative details and customization structure.
It brings quality and speed to your works with its high precision, long life and service activities, and carries customer satisfaction to the highest level.
